Events, and the graphs generated from performance monitoring, are the primary operational tools for understanding the state of your environment. This chapter: defines events and describes the event management system.
Defines events
Describes important event management system features, such as de-duplication and auto-clear correlation
Provides more information about managing events through the user interface
To enter the event management system, an event must contain values for the device, severity, and summary fields. If an event is missing any of these fields, then Zenoss rejects it.
Basic event fields are:
device
ipAddress
eventState
severity
summary
message
evid
The device field is a free-form text field that allows up to 128 characters. Zenoss accepts any value for this field, including devices that are not in the database. If the device field contains an IP address, then the system queries the database for devices with a matching address. If it finds a match, it changes the device field to the found device name.
The ipAddress field is a free-form text field that allows up to 15 characters. This field is not required. If the system cannot successfully locate a device based on the event's device field content, it attempts to find the device based the event ipAddress field content, if present.
Zenoss automatically adds information to incoming events that match a device in its database. Fields added are:
prodState - Specifies the device's current production state.
Location - Specifies the location (if any) to which the device is assigned.
DeviceClass - Classifies the device.
DeviceGroups - Specifies the groups (if any) to which the device is assigned.
Systems - Systems (if any) to which the device is assigned.
DevicePriority - Priority assigned to the device.
For more information about these fields, refer to the chapters titled "Production States and Maintenance Windows" and "Organizers and Path Navigation."
The eventState field defines the current state of the event. This field is often updated after an event has been created. Values for this numeric field are 0-2, defined as follows:
| Number | Name |
|---|---|
| 0 | New |
| 1 | Acknowledged |
| 2 | Suppressed |
The severity field defines the severity of the event. Values for this numeric field are 0-5, defined as follows:
| Number | Name | Color |
|---|---|---|
| 0 | Clear | Green |
| 1 | Debug | Grey |
| 2 | Info | Blue |
| 3 | Warning | Yellow |
| 4 | Error | Orange |
| 5 | Critical | Red |
The summary and message fields are free-form text fields. The summary field allows up to 128 characters. The message field allows up to 65535 characters. These fields usually contain similar data.
The system handles these fields differently, depending on whether one or both are present on an incoming event:
If only summary is present, then the system copies its contents into message and truncates summary contents to 128 characters.
If only message is present, then the system copies its contents into summary and truncates summary contents to 128 characters.
If summary and message are both present, then the system truncates summary contents to 128 characters.
As a result, data loss is possible only if the message or summary content exceeds 65535 characters, or if both fields are present and the summary content exceeds 128 characters.
To ensure that enough detail can be contained within the 128-character summary field limit, avoid reproducing information in the summary that exists on other fields (such as device, component, or severity).
The evid field is the event identifier, or event ID. It is a 36-character, unique identifier for every event that comes into the system. An incoming event should never have an evid assigned to it, because the system creates it immediately before the event is inserted into the database. If an incoming event does have an assigned evid, then the system ignores it and replaces it with a generated evid.
Events include numerous other standard fields. Some control how an event is mapped and correlated; others provide information about the event.
The following table lists additional event fields.
| Field | Description |
|---|---|
| depuid | Dynamically generated fingerprint that allows the system to perform de-duplication on repeating events that share similar characteristics. |
| component | Free-form text field (maximum 255 characters) that allows additional context to be given to events (for example, the interface name for an interface threshold event). |
| eventClass | Name of the event class into which this event has been created or mapped. |
| eventKey | Free-form text field (maximum 128 characters) that allows another specificity key to be used to drive the de-duplication and auto-clearing correlation process. |
| eventClassKey | Free-form text field (maximum 128 characters) that is used as the first step in mapping an unknown event into an event class. |
| eventGroup | Free-form text field (maximum 64 characters) that can be used to group similar types of events. This is primarily an extension point for customization. Currently not used in a standard system. |
| stateChange | Last time that any information about the event changed. |
| firstTime | First time that the event occurred. |
| lastTime | Most recent time that the event occurred. |
| count | Number of occurrences of the event between the firstTime and lastTime. |
| prodState | Production state of the device when the event occurred. If an event is still active when a device's production state is changed, the event's prodState will be updated accordingly. |
| suppid | If this event has been suppressed by another event, then suppid contains the other event's evid. |
| manager | Deprecated. The monitor field replaces this field. |
| agent | Typically the name of the daemon that generated the event. For example, an SNMP threshold event will have zenperfsnmp as its agent. |
| DeviceClass | Device class of the device that the event is related to. |
| Location | Location of the device that the event is related to. |
| Systems | Pipe-delimited list of systems that the device is contained within. |
| DeviceGroups | Pipe-delimited list of systems that the device is contained within. |
| facility | Only present on events coming from syslog. The syslog facility. |
| priority | Only present on events coming from syslog. The syslog priority. |
| ntevid | Only present on events coming from Windows event log. The NT Event ID. |
| ownerid | Name of the user who acknowledged this event. |
| clearid | Only present on events in history that were auto-cleared. The evid of the event that cleared this one. |
| DevicePriority | Priority of the device that the event is related to. |
| eventClassMapping | If this event was matched by one of the configured event class mappings, contains the name of that mapping rule. |
| monitor | In a distributed setup, contains the name of the collector from which the event originated. |
In addition to the standard fields, the system also allows events to add an arbitrary number of additional name/value pairs to events to give them more context. The name and value of these details are limited to 255 characters in length.
Zenoss uses an event "de-duplication" feature, based on the concept of an event's fingerprint. Within the system, this fingerprint is the "depuid." All of the standard events that the system creates as a result of its polling activities are de-duplicated, with no setup required. However, you can apply de-duplicating to events that arrive from other sources, such as syslog, SNMP traps, or a Windows event log.
The most important de-duplication concept is the fingerprint. In all cases, an event's fingerprint (or dedupid) is composed of a pipe-delimited string that contains these event fields:
device
component (can be blank)
eventClass
eventKey (can be blank)
severity
summary (omitted from the dedupid if eventKey is non-blank)
When the component and eventKey fields are blank, a dedupid appears similar to:
www.example.com||/Status/Web||4|WebTx check failed
When the component and eventKey fields are present, a dedupid appears similar to:
router1.example.com|FastEthernet0/1|/Perf/Interface|threshName
When a new event comes into the system, the dedupid is constructed. If it matches the dedupid for any active event, the existing event's count field is incremented by one, and its lastTime field is updated to be the current time. If it does not match the dedupid of any active events, then it is inserted into the active event table with a count of 1, and the firstTime and lastTime fields are set to the current time.
The following illustration depicts a de-duplication scenario in which an identical event occurs three times, followed by one that is different in a single aspect of the dedupid fingerprint.
If you want to change the way de-duplication behaves, you can use an event transform to alter one of the fields used to build the dedupid. You also can use a transform to directly modify the dedupid field, for more powerful cross-device event de-duplication.
The auto-clearing feature is similar to the de-duplication feature. It also is based on the event's fingerprint. The difference is which event fields make up the fingerprint, and what happens when a new event matches an existing event's fingerprint.
All of the standard events created as a result of polling activities do auto-clearing by themselves. As with de-duplication, you would invoke auto-clearing manually only to handle events that come from other sources, such as syslog, a Windows event log, or SNMP traps.
The auto-clear fingerprint for an event is built by using the combination of these fields:
device
component (can be blank)
eventKey (can be blank)
eventClass (including zEventClearClasses from event class configuration properties)
When a new event comes into the system with a special 0 (Clear) severity, Zenoss checks all active events to see if they match the auto-clear fingerprint of the new event. All active events that match the auto-clear fingerprint are moved from the active events table to history, and their clearid field is set to the evid of the event that cleared them.
If an event is cleared by the clear event, it is also inserted into the event history; otherwise, it is dropped. This is done to prevent extraneous clear messages from filling your events database.
The following illustration depicts a standard ping down event and its associated clear event.
If you need to manually invoke the auto-clearing correlation system, you can use an event transform to make sure that the clear event has the 0 (Clear) severity set. You also need to ensure that the device, component, and eventClass fields match the events you intend to clear.
Note
Avoid making clear events too generic; otherwise, you may inadvertently clear a wider variety of events that you intend.
Zenoss features multiple event consoles that allow you to view and manage events. Each console shows different events subsets, depending on your current context.
Event consoles are:
Master - To access this console, click Events on the navigation bar. You can view all events from this console.
Custom - Users can create custom event consoles from the Event Views selection in user preferences. Each custom event console has access to the same events as the global console, but can be filtered more specifically.
Contextual - Contextual event consoles are found throughout the system. Each time you see an Events selection for a device, device organizer, component, or event class, you can view event information that has been automatically filtered to show events specific to the current context.
The master event console is the system's central nervous system, enabling you to view and manage events. It displays the repository of all events that have been collected by the system.
The following procedures provide more information about using the event console to:
Select, sort and filter events
Work with live search
Acknowledge events
Move events to history or return them to active status
Export event data
Create events
To select one or more events in the event console, you can:
Click a row to select a single event
Ctrl-Click rows to select multiple events, or Shift-Click to select a range of events
Click Select to select all, none, new, acknowledged, or suppressed events
To customize your view, you can sort and filter events by any column that appears in the master event console.
To sort events, click a column header. Clicking the header toggles between ascending and descending sort order.

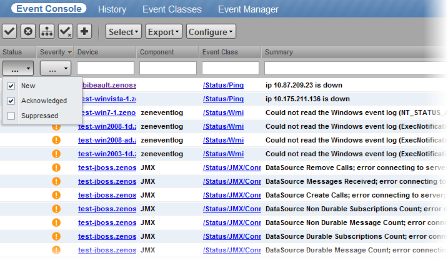

Filter options appear below each column header.
You can filter the events that appear in the list in several ways, depending on the field type. Date fields (such as First Seen and Last Seen) allow you to enter a value or use a date selection tool to limit the list. For other fields, such as Device, Component, and Event Class, enter a match value to limit the list.
The Count field allows you to filter the list when compared to a value:
n - Displays events with counts greater than or equal to that value.
<n - Displays events with counts less than that value.<=n - Displays events with counts less than or equal to that value.=n - Displays events with counts equal to that value.
To clear filters, select Configure > Clear filters.
By default, the system uses a "live search" feature to help you locate information. From the event console, you can search for information by:
Device (name or IP address)
Component
Event class
Summary
With live search enabled (the default behavior), the system filters available information immediately. It presents increasingly refined information with each character you type in the search window. When disabled, search responds only after you enter one or more characters and then press Enter.
To disable or enable the live search feature, select or de-select the Enable live search option in the Configure list of options.
You can save your event console view by bookmarking it for quick access later. To do this:
Select Configure > Save this configuration.
A dialog containing a link to the current view appears.
Click and drag the link to the bookmarks link on your browser's menu bar.
A link titled "Event Console" appears in your bookmarks list.
Tip: You may want to re-title the bookmark, particularly if you choose to save more than one event console view.
You can refresh the list of events manually or specify that they refresh automatically. To manually refresh the view, click Refresh. You can manually refresh at any time, even if you have an automatic refresh increment specified.
To set up automatic refresh, select one of the time increments from the Refresh list.
You can view details for any event in the system. To view details, double-click an event row.
Tip: Be sure not to click other links in the row. These go to other pages.
The Event Details area appears.
To see more information about the event, click Show more details. To display the event information in a new window, click the icon located at the top right.
You can use the Log area to add specific information about the event. Enter details, and then click Add.
You may want to mark an event as "acknowledged" to indicate, for example, that you have taken action to remedy a problem. To mark events as acknowledged:
Select one or more events in the event console view.
Click
.A check mark appears for each acknowledged event.
You may want to return a previously acknowledged event to "new" status (revoke its "acknowledged" status). To do this:
Select one or more events in the event console view.
Click
.A check mark no longer appears in the event row, and the event is returned to "new" status.
Classifying events lets you associate events shown as/Unknown with a specific event class. To classify events:
Select one or more /Unknown events in the event console view.
Click
.The Classify Events dialog appears.
Select an event class from the list of options, and then click Submit.
Note
You can also classify events from event history.
When you no longer want to actively monitor event (such as after you acknowledge it, for example), you can move it to history. To do this:
Select one or more events in the event console view.
Click
.The selected events are moved to history.
To view events in history, click the Event History link (located at the bottom left of the Event Console page).
You can return events that have been moved to history to active status. When you do this, the events reappear in the event console.
To return events in history to active status:
Click Event History to go to the event history page.
Select one or more events.
Click
.The selected events are returned to active status and appear in the event console.
To create events from the event console, click
.
For more information about manual event creation, see the section titled "Creating Events Manually."
Events come into the system in two ways. Generated events are created as a result of active polling. Captured events are transmitted by external actions into the system.
These standard daemons are responsible for generating events. They automatically perform appropriate de-duplication and auto-clearing.
zenping - Ping up/down events
zenstatus - TCP port up/down events
zenperfsnmp - SNMP agent up/down events, threshold events
zencommand - Generic status events, threshold events
zenprocess - Process up/down events, threshold events
zenwin - Windows service up/down events
Captured events are those events that the system does not specifically know will occur in advance. De-duplication is performed on these events, but in some cases may need to be tuned. By default, no auto-clearing is done on captured events. Event transforms must be used to create the auto-clear correlations.
These standard daemons are responsible for collecting captured events:
zensyslog - Events created from syslog messages.
zentrap - Events created from SNMP traps and informs.
zeneventlog - Events created from the Windows event log.
There are a number of APIs available for submitting events into the system. For more information, see the Zenoss Developer's Guide.
Any ZenPacks you install may optionally include their own daemons. For more information, see Zenoss Extended Monitoring.
You can manually create events. While this is not something you would do as part of normal system operation, it can be helpful when you are attempting to test mappings and transforms you have created.
To create events manually through the user interface:
To send events from the command line, use the zensendevent script, in this format:
zensendevent Options summaryCommon options include:
-d DEVICE, --device=DEVICE
-i IPADDRESS, --ipAddress=IPADDRESS
-y EVENTKEY, --eventkey=EVENTKEY
-p COMPONENT, --component=COMPONENT
-k EVENTCLASSKEY, --eventclasskey=EVENTCLASSKEY
-s SEVERITY, --severity=SEVERITY
-c EVENTCLASS, --eventclass=EVENTCLASS
Event classes are a simple organizational structure for the different types of events that the system generates and receives. This organization is useful for driving alerting and reporting. You can, for example, create an alerting rule that sends you an email or pages you when the availability of a Web site or page is affected by filtering on the /Status/Web event class.
Following is a subset of the default event classes. You can create additional event classes as needed.
/Status - Used for events affecting availability.
/Status/Ping - Ping up/down events
/Status/Snmp - SNMP up/down events
/Status/Web - Web site or page up/down events
/Perf - Used for performance threshold events.
/Perf/CPU - CPU utilization events
/Perf/Memory - Memory utilization or paging events
/Perf/Interface - Network interface utilization events
/Perf/Filesystem - File system usage events
/App - Application-related events.
/Change - Events created when the system finds changes in your environment.
Just as device classes and devices have configuration properties, so do event classes and event class mappings. Configuration properties are applied hierarchically, with the most specific property being applied.
The following configuration properties are available on event classes and class mappings.
zEventAction - How and where affected events are stored when they occur.
status - Active events table
history - Historical event table
drop - Events are not stored
zEventClearClasses - Optional list of event class names whose active events will be cleared by clear events occurring in this class.
zEventSeverity - The severity of affected events is changed to this value unless the Original value is used.
A good example of how the system uses the event class configuration properties is found in the /Change event class. Within the /Change event class' configuration properties, zEventAction is set to drop and zEventSeverity is set to Info. This configuration causes all of the changes in your environment to be stored as info severity events in the history table.
For more information about event manipulation techniques, see the section titled "Mapping and Transformation."
The event mapping and transformation system allows you to perform a wide range of operations, from altering the severity of certain events to altering nearly every field on an event, based on complex rules.
You cannot alter the following fields through event transformation. (This is because they are set after transformation has been performed.)
evid
firstTime
lastTime
count
The following illustration shows the path followed by an incoming event in the event mapping system.
The mapping and transformation process begins with the "eventClass field exists" decision. This also is one of the more important differentiators in how you must handle a particular type of event.
To view event class mappings, go to Events in the navigation menu, and then select Mappings in the left panel. This allows you to see all event class mappings in a single location. The EventClass column shows which event class the mapping is in.
You can create event class mappings directly from the event classes, but does this requires that you know the eventClassKey. A simpler way to create event class mappings is through the event console:
Select an event that you want to match in the event console.
Click
(Map to event class).The Classify Events dialog appears.
Select the event class to which you want to map the event, and then click Submit.
This creates the event class mapping with the correct eventClassKey and example text against which you can develop your regular expression.
When editing an event class mapping, you can control which events it will match, as well as other properties:
Event Class Key - Must match the incoming event's eventClassKey field for this mapping to be considered as a match for events.
Sequence - Sequence number of this mapping, among mappings with an identical event class key property. Go to the Sequence tab to alter its position.
Rule - Provides a programmatic secondary match requirement. It takes a Python expression. If the expression evaluates to True for an event, this mapping is applied.
Regex - The regular expression match is used only in cases where the rule property is blank. It takes a Perl Compatible Regular Expression (PCRE). If the regex matches an event's message field, then this mapping is applied.
Transform - Takes Python code that will be executed on the event only if it matches this mapping. For more details on transforms, see the section titled "Event Class Transform."
Explanation - Free-form text field that can be used to add an explanation field to any event that matches this mapping.
Resolution - Free-form text field that can be used to add a resolution field to any event that matches this mapping.
The sequence area of an event class mapping allows you to provide more than one mapping for the same eventClassKey. In this case, the sequence is evaluated in ascending order until a full (rule or regex) match is found.
Mappings have the same configuration properties as event classes. Any configuration property set locally on a mapping will override the same property set on the event class. This works in the same hierarchical, most specific match, concept that device class and device configuration properties work.
When a captured event occurs, it will not have a pre-defined event class. For this type of event, you must create an event class mapping if you want to affect the event. If a captured event occurs and none of the event class mappings in the system match it, its event class will be set to /Unknown, and it will retain all of the default properties with which it began.
The next step of evaluation for events without an event class is to check on the eventClassKey field. This controls which event class mapping the event will match. If the event has a blank eventClassKey, or its eventClassKey does not match any event class mappings in the system, the special “defaultmapping” eventClassKey is searched for instead. This provides for a way to map events even if they have a blank or unpredictable eventClassKey.
When a generated event occurs, it has an event class assigned to it. This causes the event class mapping step to be skipped. The only way to affect the fields of one of these events is through the event class’ configuration properties and transform.
To access the transform for an event class:
Navigate to the event class from Events > Event Classes.
From the Action menu, select Transform.
Enter information into the dialog (as Python code), and then click Save.
The objects available in this Python context are evt (the event); and, if the event matches a device that exists in the system database, a device object.
Example
The following example shows how you can validate that a device object exists before using it to drop events from a particular location.
if device and "Hawaii" in device.getLocationName(): evt._action = "drop"
In addition to manual methods for getting events into the status or history tables, there are automated processes that move events from status into history. The event life cycle is defined as all of the ways that events can be added to, moved in, and deleted from the database.
The following illustration depicts the event life cycle.
From the event manager (Events > Event Manager), you can set up automatic aging of certain events from the status table to the history table. This allows you to have lower severity events that do not reoccur for a specified length of time to be automatically archived to the history table.
Properties that control this behavior are:
Event Aging Threshold (hours) - By default, set to 4 hours.
Don't Age This Severity and Above - By default, set to Error.
With the default settings, Debug, Info, and Warning events that do not occur for four hours are automatically moved into the history table.
You can set up automatic purging of events from the history table from the event manager. When events are purged from the history table, they can be recovered only from backups. For this reason, the default setting is 0, which specifies that events are never automatically purged from history.
The event manager property that controls this behavior is Delete Historical Events Older Than (days).
Event commands allow the system to run arbitrary shell commands when events occur that match pre-configured criteria. This allows almost any action to be taken in response to events that occur.
Common uses of event commands include:
Auto-remediation of events. You can use SSH to remotely restart services on a UNIX system when they fail, or winexe to do the same for Windows services.
Integration with external systems. This includes sending SNMP traps to other management systems, or opening tickets in your incident management system.
Extending alerting mechanisms. Currently, Zenoss supports only email and pagers as alerting mechanisms "out of the box" through normal alerting rules. You could use event commands to alert through instant messaging systems, or by playing sounds.
The event commands that you configure are evaluated and executed by the zenactions daemon once each minute (just as in alerting rules).
To create or edit event commands, go to the Event Manager, and then select Commands in the left panel. From here, you can adjust these properties:
Enabled - If set to True, then the command is evaluated and executed.
Default Command Timeout (secs) - Length of time in seconds the system will wait for the commands to run that you specify in the Command and Clear Command fields. If the command takes longer than this, the system kills it.
Delay (secs) - Specifies the minimum age (in seconds) of an event before the command will be executed on it. This prevents commands from being run for flapping events.
Repeat Time (secs) - If the command runs, then it will run again in the specified seconds if the triggering event is still active. Setting this value to 0 causes the command to be run only one time.
Command - Specifies the command that will be executed in the shell when the criteria specified in the Where field match an event. This command is executed as the zenoss user, and uses TALES syntax for variable substitution. (For more information about TALES, see the appendix titled "TALES Expressions.") Available variables are
evt,device, andcomponent.Clear Command - Similar to the Command property. This is executed only when an event that originally matched the criteria is cleared.
Where - Defines the criteria that an event must match to trigger this event command.
ZenMail and ZenPop allow you to capture email messages as events. This capability can be useful for situations in which embedded systems (such as WAPs, NAS devices, or RAID controllers) rely on email notification for events.
ZenMail serves as an SMTP server that you can bind to a specific TCP port. You can then configure your embedded system to send mail to the Zenoss server explicitly by using the Zenoss server's IP address as the relay.
ZenMail supports these configuration directives:
${ZENHOME}/bin/zenmail(no arguments) - Default operation. Binds to port 25 on all ports and listens for email messages to arrive. Ignores the TO field in the email and uses the FROM address as the device IP address.${ZENHOME}/bin/zenmail--listenPort- Bind to the port provided. Useful in situations in which an SMTP server is already running on the Zenoss server and you do not want to interfere with the existing mail delivery system. Semantics are the same as the no argument version (FROM address is used as the device IP).
ZenPop allows you to retrieve event email from a POP server. ZenPop supports these configuration directives:
-usessl- Issue the STARTTLS command to the POP server and attempt to transfer email messages using SSL encryption. This is required if retrieving mail from Google.--nodelete- Do not issue the DELE command after retrieving all messages. Typically this is used during initial testing so that you do not have to resend test messages to the POP account. Some email systems (such as Google) do not actually delete messages when the DELE command is issued.--pophost- The hostname or IP address of the POP server from which to retrieve messages.--popport- The TCP port the POP server listens on. Defaults to 110. Used in situations where the POP provider listens on another port (for example, Google on port 995).--popuser- The user name that contains email messages to retrieve.--poppass- The password to use for the user name provided.--cycletime- The time to sleep between polls. After all email is retrieved, ZenPop sleeps for this amount of time before waking up and attempting to pull new email.
Zenoss translates various message elements to the event, as follows:
FROM Field - If the FROM field is an IP address, then the system associates the event with the device with the same IP address. If the FROM field is a fully qualified domain name, then the system resolves it to an IP address, and then performs the device association using the resolved IP address. The resolution of hostname uses "A" records rather than "MX" records.
TO Field - The system ignores the TO field in the email message. ZenMail accepts email to any user and domain name combination. ZenPop also drops the TO field, and uses only the FROM field.
SUBJECT Field - ZenMail and ZenPop use the SUBJECT as the event summary.
Message Body - ZenMail and ZenPop use the first mime attachment as the event details. The system ignores secondary message bodies (typically HTML-encoded versions of the message). It also ignores attachments (such as files).
An SNMP trap is a message that is initiated by a network element and sent to the network management system. Often, traps indicate a failure of some sort, such as a router message indicating a power supply failure, or a printer message indicating an "out-of-ink" condition.
If an SNMP trap enters the system, and Zenoss cannot identify the event (the event is classified as "/Unknown"), then you can classify the event so that the system handles it consistently.
To classify an SNMP trap event:
From the Event Console, select the unknown event or events.
Click
(Map to event class).The Classify Events dialog appears.
Select /App, and then click Submit.
To edit this classification:
From the Navigation area, select Events > Event Classes.
In the left panel, select Mappings.
Select the event map you created.
In the left panel, select Edit.
The edit page appears. This page contains rules used to map the event to the /App category. This rule, since it matches the trap by a specific OID, is all that is needed.
In the Transform area, you can enter code to modify the summary. For example, if you want to set the summary string to "Spam Filter Detects Virus," then you can enter:
evt.summary = "Spam Filter Detects Virus"
A trap has a header with some standard information, followed by a sequence of attribute/values.
You have indicated you want the value for the OID ".1.3.6.1.4.1.9789.1500.2.5" as the summary. If you had the MIB loaded, you could do this:
evt.summary = evt.spamFilterDetectsVirus
However, the OID and the data is still in there. Instead, use the slightly more cryptic:
evt.summary = getattr(evt, ".1.3.6.1.4.9789.1500.2.5", "Unexpected missing OID")
The "device" object for the event has been made available, as well:
evt.summary = getattr(evt, ".1.3.6.1.4.9789.1500.2.5", "Unexpected missing OID") + " from device " + device.getId()
Zenoss uses MIBs to translate SNMP traps that contain raw OID values. Loading an MIB into the system allows it to translate numeric OIDs such as .1.3.6.1.2.1.1.6 into descriptive phrases like “sysLocation”. It also makes it easier to manipulate the events in an event mapping.
Following is a small demonstration MIB.
NOTIFICATION-TEST-MIB DEFINITIONS ::= BEGIN IMPORTS ucdavis FROM UCD-SNMP-MIB NOTIFICATION-TYPE FROM SNMPv2-SMI ; demonotifs OBJECT IDENTIFIER ::= { ucdavis 991 } demo-notif NOTIFICATION-TYPE OBJECTS { sysLocation } STATUS current DESCRIPTION "Just a test notification" ::= { demonotifs 17 } ENDFollow these steps to send an SNMP trap.
From the command line, enter the following command:
$ snmptrap -v 2c -c public localhost '' 1.3.6.1.4.1.2021.991.1.3.6.1.2.1.1.6 s "Device in Annapolis"
Save this demonstration MIB into a file.
Send the trap.
Open the Event Console and find the trap you sent.
In the far right column of the event console, click the magnifying glass in the far right column for the event you just sent.
Click the Details tab.
You should see:
.1.3.6.1.2.1.1.6 Device in Annapolis
Send this event to the history.
Now, load some MIBs into the system so that this OID is translated into a better format:
Copy the demonstration MIB into
$ZENHOME/share/mibs/site.Run zenmib to load it:
$ zenmib run -v 10 DEBUG:zen.zenmib:TRAP-TEST-MIB.mib INFO:zen.zenmib:Unable to find a file providing \ the MIB UCD-SNMP- MIB ...
The MIB loaded, but is missing some other definitions. Copy them:
$ cp /usr/share/snmp/mibs/SNMPv2-MIB.txt $ZENHOME/share/mibs/site $ cp /usr/share/snmp/mibs/UCD-SNMP-MIB.txt \ $ZENHOME/share/mibs/site
Run zenmib again and load the definitions into the system:
$ zenmib run -v 10
Send the trap a second time:
$ snmptrap -v 2c -c public localhost '' 1.3.6.1.4.1.2021.13.991 .1.3.6.1.2.1.1.6 s "Device in Annapolis"
Check the event. Make sure the count is 1. If the count is 2, send the event to the history and send the trap again. Look at the Details tab. Now you should see something like this:
sysLocation Device in Annapolis
You should also see that the event summary changes from:
snmp trap 1.3.6.1.4.1.2021.13.991 from localhost
to:
snmp trap ucdExperimental from localhost
To modify events as they arrive, create an event map through the user interface:
Create an event class.
Go to the event console and create an event mapping in this class from the existing event.
Edit the map.
In the Transform area, update the event with detail data. The entry field allows you to insert Python scripts. The event is provided as "evt" and the device as "dev."
In this case, extract the sysLocation event detail and make it the summary with:
evt.summary = evt.sysLocation
Save the event mapping.
If you move the event to history and resend the trap, the summary for the trap should now read the device name in the location you assigned.
If you encounter problems with the transform, check the zentrap.log file for errors that occurred.
When an event arrives in the system, you can change values (such as severity). For example, you can make the summary more informative, or change severity according to text within the summary.
Each event class allows for a short Python script to be executed when an event arrives.
Example
A user may want full file system threshold events on /data to be critical. Add the following Python script in the Threshold Transform of /Events/Perf/Filesystem:
if evt.component == '/data' and evt.severity != 0: evt.severity = 5
Like event mappings for event class keys, "evt" and "device" objects are available in the script of the transform.
